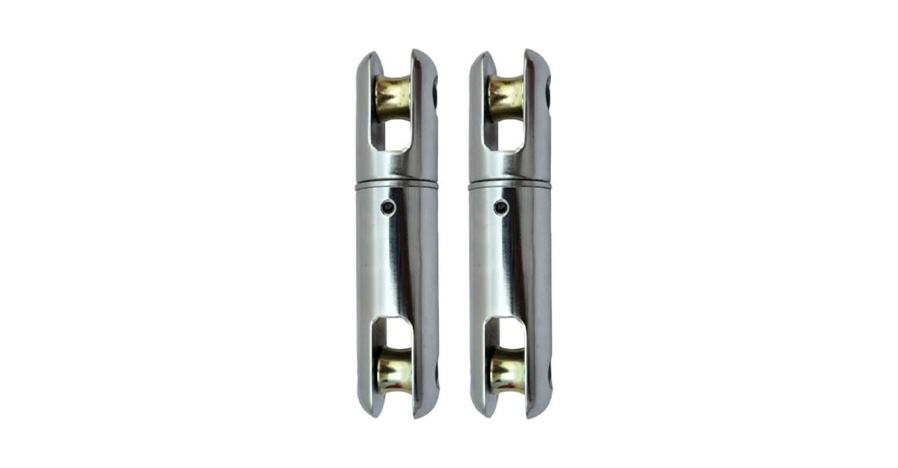

Line Swivel (Anti Rotational Device)
The Line Swivel, also known as an Anti‑Rotational Device, is an essential component used between pulling grips and hauling lines to prevent cable twisting during installation. By eliminating rotational stress, it helps maintain proper cable alignment and ensures smooth, controlled pulling operations. Equipped with precision‑machined bearings, the line swivel allows free and smooth rotation under load, significantly reducing torque transfer to the cable. This protects conductors and fiber optic cables from twisting damage, internal stress, and performance issues during installation. Line swivels are widely used in overhead line stringing, underground cable pulling, and long‑distance cable installations, where cable integrity and installation efficiency are critical. Durable and reliable, they improve safety, extend cable life, and enhance overall installation performance in demanding environments.
Technical specifications section
| Cable Lying | ||||||||
|---|---|---|---|---|---|---|---|---|
| Line Swivel (Anti Rotational Device) | ||||||||
| Capacity | Breaking Load | Safe Working Load | Body Diameter | Pin Diameter | Weight | |||
| Tons | BL | SWL | ||||||
| 2 | 8 Tons | 2 Tons | 30 mm | 25 mm | 3 kg | |||
| 5 | 20 Tons | 5 Tons | 50 mm | 45 mm | 7 kg | |||
| 10 | 40 Tons | 10 Tons | 70 mm | 60 mm | 15 kg | |||
| 15 | 60 Tons | 15 Tons | 85 mm | 75 mm | 22 kg | |||
| 20 | 80 Tons | 20 Tons | 100 mm | 90 mm | 30 kg | |||
Download Brochures
